Analytics+ offers customers with a special chart type known as Angular Gauge chart to track the actual values and the target.

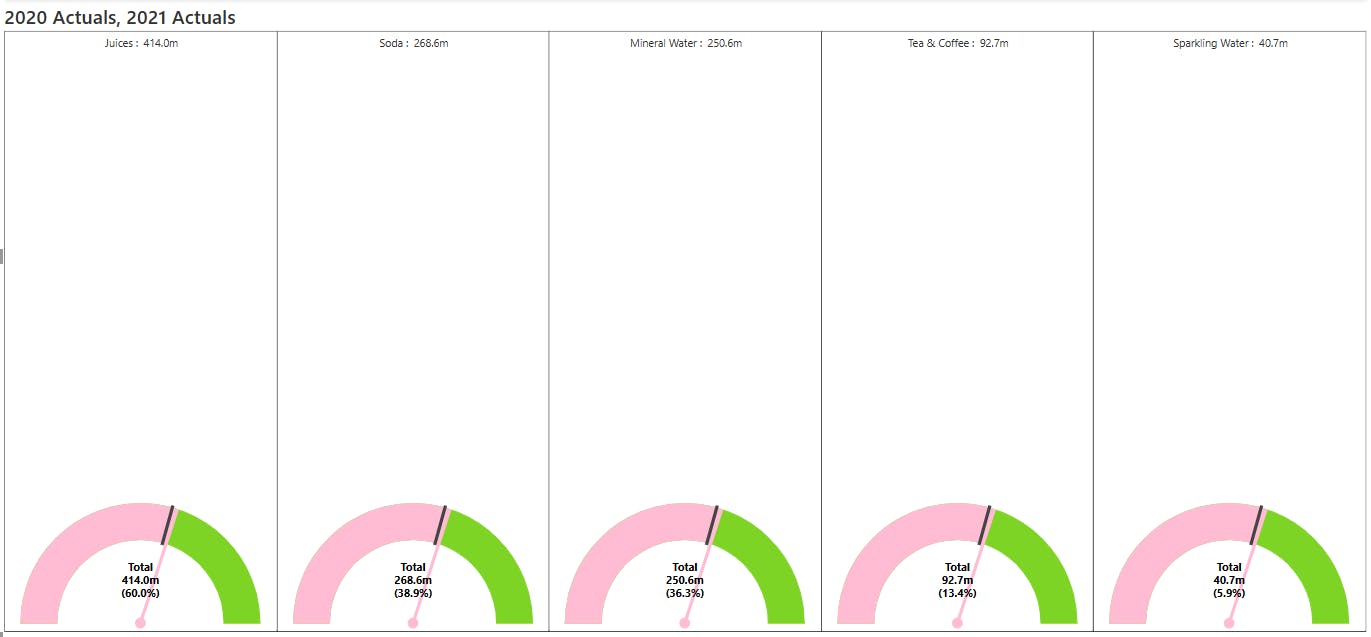

But, when you want the chart to display based on the individual categories, the Angular Chart seems to display the grand total for all the categories, as shown below.
"But what if I want to visualize the individual values for the categories? Can this be achieved in Analytics+?"
Yes, you can display the Angular Chart to display the value for each of the categories. This can be done by setting the Panel Scale as "Individual" in the Trellis option. This can be accessed by following the screenshots below.

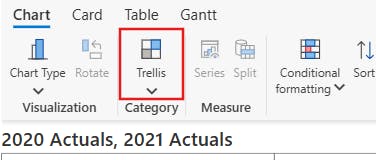

Step 1 -> Click on the Trellis option, as highlighted below.

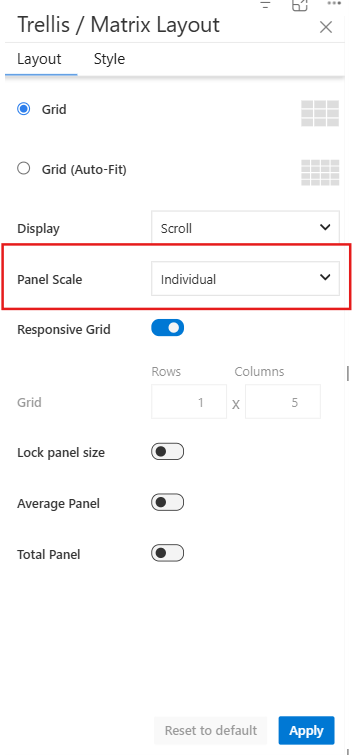

Step 2 -> Now, you can set the Panel Scale setting as "Individual" as shown below and click on Apply.

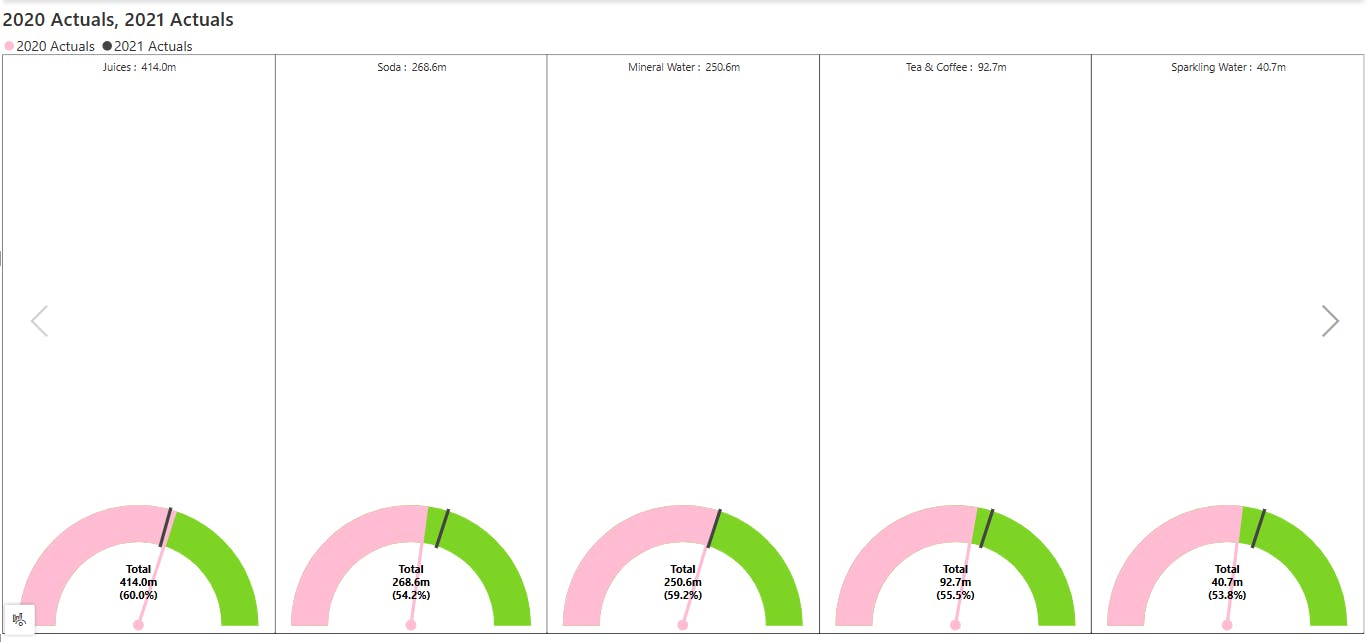

Now, the Angular Gauge chart will display according to the categories, as shown below.
We hope this has provided some clarity on this topic.
